Outdoor 144 Cores 144fibers GYTS Light Armored Stranded Loose Tube Fiber Optic GYTS Cable
제품 상세 정보
| 재료 | PE, ＬＤＰＥ, HDPE | 이름 | 옥외 광섬유 케이블 |
|---|---|---|---|
| 길이 | 각 롤 5km | 케이블 유형 | gyts |
| 섬유 | SM G652D | 코어 | 2 코어 288 코어 |
| 색상 | 검은색 | 지름 | 9.0MM |
| 부품 번호 | GYTS-144b1 | ||
| 강조하다 | Outdoor GYTS fiber optic cable,144 cores loose tube cable,Light armored stranded fiber cable |
||
제품 설명

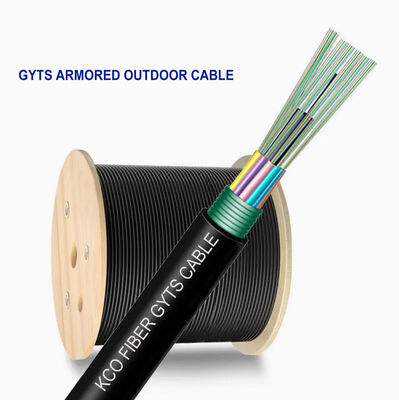

Outdoor 144 Cores 144fibers GYTS Light Armored Stranded Loose Tube Fiber Optic GYTS Cable
1. What is Fiber Optic GYTS Cable?
- The fiber optic GYTS cable is a highly reliable solution designed of cable specifically for outdoor duct and aerial installations.
- The fiber optic GYTS cables provide exceptional connectivity and data transmission in various applications such as FTTH, FTTA, FTTO, FTTB, FTTR, etc.
- The fiber optic GYTS consists of multiple PBT loose tubes. Color-coded optical fibers are protected within these loose tubes, which also contain a filling compound to safeguard the fibers against damage. Typically, a steel wire is incorporated into the core of the cable to enhance its tensile strength, thereby preventing accidental breakage during outdoor installation and avoiding unnecessary losses. The GYTS cable is wrapped in a layer of steel tape to further boost its tensile strength, and is finally encased in a black, UV-resistant PE outer sheath, ensuring a service life of 20 to 30 years in harsh outdoor environments.
- The typical of GYTS cable use single mode G652D fiber. It is most popular and cost-effective fiber type. KCO Fiber supply OEM and ODM service for all type of outdoor fiber optic cable.
- The fiber optic GYTS cable 144 cores use 12pcs of PBT loose tube, that each tube can accommodate 12 colored optical fibers.

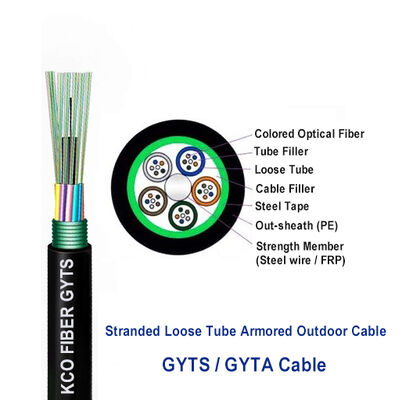

2. Fiber Optic GYTS Cable structure:
3. Fiber Optic GYTS Cable Advantage:
- Reliability: Fiber optic GYTS cables provide a dependable and consistent connection, ensuring uninterrupted data transmission even in challenging environments.
- Flexibility: With their versatile design, Fiber optic GYTS cables can be easily deployed in various installations, accommodating different network architectures and requirements.
- Scalability: Fiber optic GYTS cables support high fiber counts, allowing for scalability and future network expansion needs.
- Protection: Fiber optic GYTS cables light-armored feature offers robust protection against physical damage, moisture, and environmental factors, ensuring reliable performance and longevity.
- Long-Distance Transmission: Fiber optic GYTS cables are specifically designed to support long-distance data transmission without compromising signal quality, making them ideal for applications requiring extensive coverage.
4. Fiber Optic GYTS Cable Production Standard
- Complies with Standard YD/T 1155-2001 as well as IEC 60794-1.
5. Fiber Optic GYTS Cable specification:
| Cable Type | Fiber Count | Cable Diameter MM | Cable Weight KG/KM | Tensile Strength Long/Short Term N | Crush Resistance Long/Short Term N/100MM | Bending Radius Static/Dynamic MM | ||
|---|---|---|---|---|---|---|---|---|
| KCO-GYTS2-30 | 2~30 | 8.5 | 65 | 600 | 1500 | 300 | 1000 | 10D/20D |
| KCO-GYTS2-36 | 32~36 | 9.4 | 70 | 600 | 1500 | 300 | 1000 | 10D/20D |
| KCO-GYTS38-60 | 38~60 | 9.5 | 85 | 600 | 1500 | 300 | 1000 | 10D/20D |
| KCO-GYTS62-72 | 62~72 | 10 | 105 | 600 | 1500 | 300 | 1000 | 10D/20D |
| KCO-GYTS74-96 | 74~96 | 11.9 | 130 | 600 | 1500 | 300 | 1000 | 10D/20D |
| KCO-GYTS98-120 | 98~120 | 14.4 | 190 | 600 | 1500 | 300 | 1000 | 10D/20D |
| KCO-GYTS122-144 | 122~144 | 14.6 | 200 | 600 | 1500 | 300 | 1000 | 10D/20D |
| KCO-GYTS146-288 | 146~288 | 16.5 | 245 | 600 | 1500 | 300 | 1000 | 10D/20D |
6. Fiber characteristic
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
|---|---|---|---|---|---|
| Attenuation (+20℃) | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | |||
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | |||
7. Fiber and loose tube color
| 1 | 2 | 3 | 4 | 5 | 6 |
|---|---|---|---|---|---|
| Blue | Orange | Green | Brown | Grey | White |
| 7 | 8 | 9 | 10 | 11 | 12 |
| Red | Black | Yellow | Violet | Pink | Aqua |
KCO Fiber OEM/ODM Service:
If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

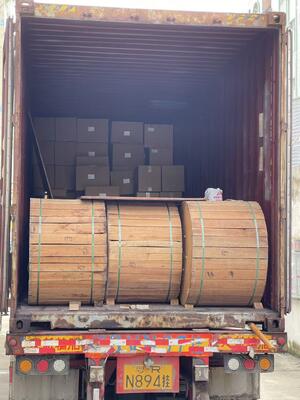

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
