12 Ports Optical Fiber Patch Panel Drawer Sliding 1U Black Color Rack Mount
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 커넥터 1 | SC 단체 | 커넥터 2 | LC 이중 통신 |
|---|---|---|---|
| 사이즈 | 485*300*1U | 능력 | 12개 핵심 SC 또는 24 핵심 LC |
| 색 | 검정색 | 높은 것 | 1U / 44.5 밀리미터 |
| 타입 | 서랍식 | Standard | 19 inch |
| 로고 인쇄 | 주문 제작됩니다 | OEM ODM 서비스 | 예 |
| 강조하다 | Optical Fiber Patch Panel 1U,Sliding Optical Fiber Patch Panel OEM |
||
제품 설명
Drawer Sliding 1U Black Color Rack Mount Optical Fiber Patch Panel 12 Ports
Description:
- The 12 port rack mount optical fiber patch panel is a 19’’ rack mounted fiber optic patch panel that made of cold-roll steel, with plastic splice tray inside, suitable for pigtail, ribbon and bunch cable distribution.
- The 12 port rack mount optical fiber patch panel has metal sliding fittings with self-locking functions prevent the drawer from falling when moved.
- The 12 port rack mount optical fiber patch panel is suitable for all types of adapters.
- The 12 port rack mount optical fiber patch panel can also be pre-loaded completely with the required adapter and simple management kit.
- The sliding system in its basic form can be supplied with or without adapters. The tray is locked in place and has two plastic catches for simple installation.
- The 12 port rack mount optical fiber patch panel fully provides a perfect working flat form for simple installation and easy maintenance.
- The 12 port rack mount optical fiber patch panel has two compartments. One contains the bulkhead receptacles or adapters, and the other is used for splice tray and excess fiber storage.
- The 12 port rack mount optical fiber patch panel height: 1U: 44.5mm (max 24 ports)
- Rack Mount Optical Fiber Patch Panel Catalogy:
1/ Fixed Type Optical Fiber Patch Panel
2/ Drawer Type Optical Fiber Patch Panel
3/ Rotate Type Optical Fiber Patch Panel
4/ Distribution Unit Optical Fiber Patch Panel
5/ DinRail Optical Fiber Patch Panel
6/ Wall mount Optical Fiber Patch Panel
Applications:
- Passive Fiber Optic Networks (PON, GPON)
- Telecommunication networks
- FTTH, FTTB, FTTR, FTTO, FTTA
- LAN,WAN ,CATV networks
- Active device termination
Feature:
- Color: Black, Beige, White
- Height: 1U to 4U or more
- Standard 19'', be fit with 19'' Distribution frame.
- Adapter port available: SC, FC, LC, ST, E2000, DIN, MPO, MTP, MU, ...
- Thickness: 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm
- Packing: 1pc/small carton box, 1U: 5pcs/big carton, 2U: 3pcs/carton, 4U: 2pcs/carton

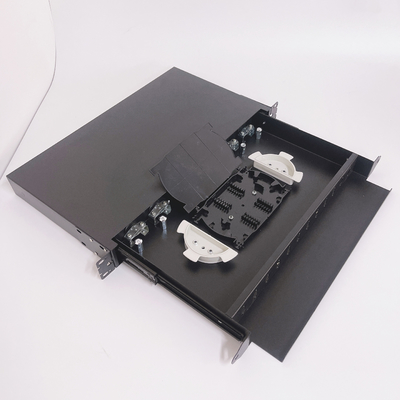

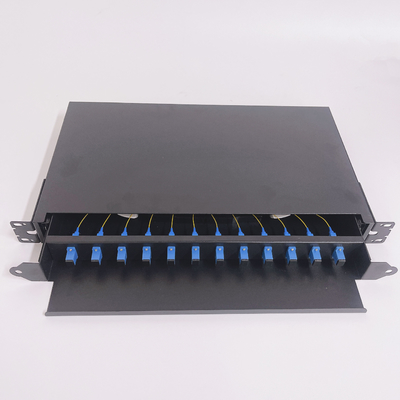

Product photo:
Descriptions:
| Fiber Capacity of panel | Max 48fo (LC Duplex adapter) |
| Panel Connector Port | 12/24 ports |
| Type | Drawer type |
| Dimension | 485*300*1U |
| Material | Cold Rolled Steel or Aluminum |
| Storage Temperature | -45~+65℃ |
| Thickness | 0.6 0.8 1.0 1.2 1.5mm |
| Accessories | Cable ties, mounting ear screws, and spiral wrap tube |
| Fiber type |
SM: G652D, G657A1, G657A2 |
| Weight | 6.50kgs |
| P/N: | KCO-DR-1U-24-SCS |

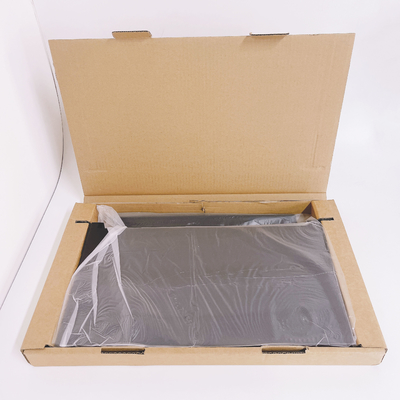

Packing:
Kocent Optec Limited Product Catalog:
1/ Fiber Optic Cable: outdoor cable, indoor cable, ftth drop cable, tactical cable.
2/ Fiber Optic Patch Cord: indoor patch cord, ftth drop patch cord, Field Fiber Optic Patch Cord, Outdoor Patch Cord.
3/ Fiber Optic Splitter: PLC Splitter, FTB Coupler, Multimode splitter.
4/ Fiber Optic Fast Connnector: SC, FC, LC, ST
5/ Fiber Optic Splice Closure: Inline type, Dome type, Aerial type, Wall mount type, Splitter Splice closure...
6/ Fiber Optic Terminal Box: Cross Cabinet, Indoor terminal box, Outdoor terminal box, FDB, FAT, CTO, Splitter Box, ...
7/ Fiber Optic Distrinution Box: Fiber Optic Patch Panel, Fiber Optic Distribution Unit, Fiber Optic Distribution Frame, ...
8/ MPO MTP Solution product: MPO Patch Cord (8fo, 12fo, 16fo, 24fo, 32fo), MTP Patch cable, MPO MTP attenuator, MPO MTP loop back, MPO MTP Adapter, MPO MTP patch panel.
Relation Product:
OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.
Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea: Huyndai, COSCO, etc
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
